#editor

It's old and limited, but also fast (and even has a debugger!)

I should honestly move to Ghidra, but I'm a bit lazy to import everything I found

because doing structs in IDA is a bit painful

There's also another more recent free version, but it lacks the debugger

Ah interesting. Ty! I'll have to install it

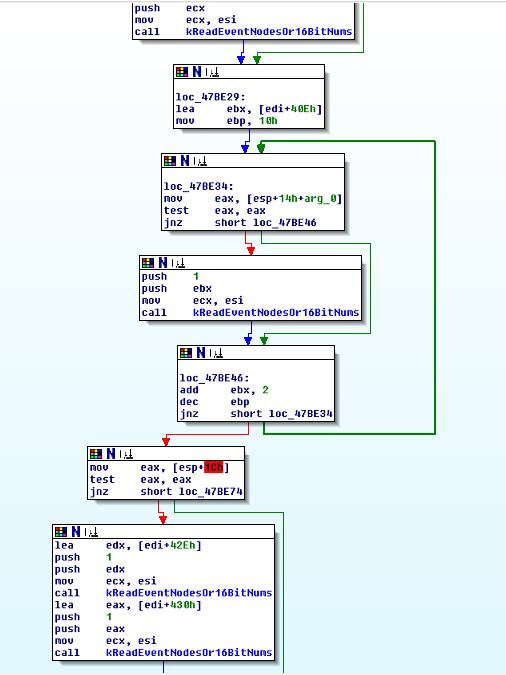

In the assembly code, after it reads ckgtUnk79, it reads an array of 16 event nodes, so I guess ckgtUnk95 is part of the array as well.

That is true

However you cannot trigger the last event node using the squad

Weird, is that a bug or intended?

Also this time they start with 0, right?

Indeed!

I don't know honestly, although squads without any music to play when fighting enemies will have this index set to 15

Also, Adrien, is there any reason why object reference selector widgets display the memory address of the object? This has been a huge issue for me the past years because it is hard to trace it back to the specific object, for example in pykedit, or to reselect it when reloading the level. Why not just display the full id like so:

Yeah this is a bit of an unfortunate thing, especially in XXL1 when there are no names. I show the pointer as it is serves as a (temporary) unique ID for the object, when it has no name or there are multiple objects having the same name. But the big disadvantage of the pointers are that they are not persistent, they will indeed change when you reload the level. And I admit they are large and waste space in the combo box (especially when using a 64-bit version), so I do have thoughts about whether to move the pointer to the end or maybe just remove it. I did intentionally decide to not show the instance number, as I think that it shouldn't be relied on neither, because it can change while editing. For example if you remove an object, the next instances decrease their instance number by 1. So it can be used as a way to identify an object (only if you don't do any changes). This is not the case with pointers. Imagine you identified an object CKLine 45, you remove some line object you no longer need, then suddenly CKLine 45 is a totally different object.

However you do mention the use case of using pykedit / hex editing. This is something that hopefully we would no longer need it (even that would take time unfortunately). But indeed for now that might be a valid reason. But maybe an alternative would be to give names to the objects? The old pykedit doesn't support reading the XEADD file that contains the names for XXL1, but I think the hex editor built-in to the new XXL Editor does? Though the latter might be lacking.

Of course you are right, I'm totally aware of the issue, but usually you do not have the option to delete an object and it's also something that is rarely done. Because at least with the id you can identify objects at all, while with pointers it's very hard to keep track off and probably incomprehensible to any newbie

Oh I did not even think about that, of course we could just name all the stuff on level load and the names will stay unchanged when removing stuff!

The names could then just be the original full id or whatever

But what I've also seen is just assigning random words from the dictionary to objects, like "CKHkDoor 0 : Banana", "CKHkDoor 1 : Apple"
